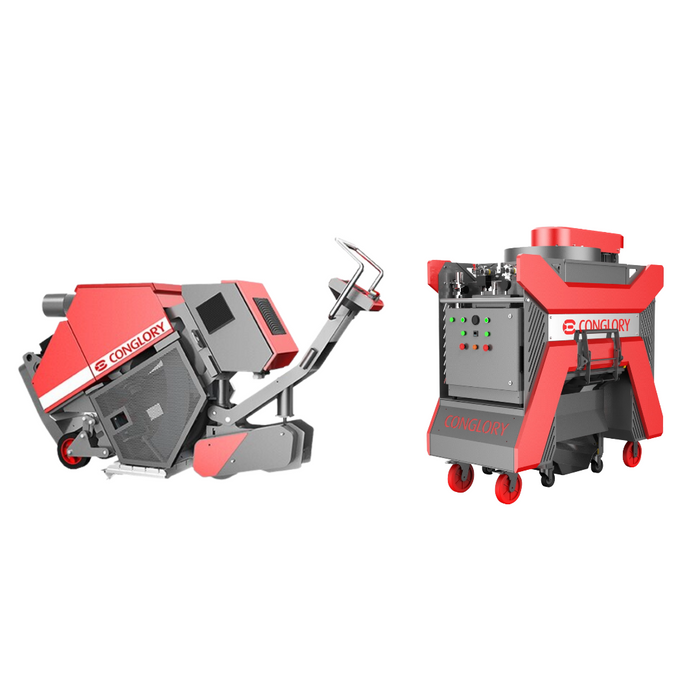

CB1-10E Shot Blaster + CD-556B Dust Collector
The CB1-10E is a high-production 10" shot blaster that's designed to create CSP profiles on existing concrete slabs and floors. Equipped with a DIGI-Steer and an HMI-Control panel, the CB1-10E shot blaster provides unmatched control over travel speed and shot flow. Its digital control panel offers constant feedback on the operation, making it easy to control the CSP profile and achieve consistent results across the entire floor. The CB-10E is paired with its own dust collector, the CD-556B, which provides the required CFM to recycle the shot during operation.
Key Features:
DIGI-Steer and HMI-Control Panel: These features provide excellent control over travel speed and shot flow, making it easy to produce consistent results.
Digital Control Panel: This provides constant feedback on the operation of the machine, making it easy to control the CSP profile across the entire floor.
Paired Dust Collector (CD-556B): This dust collector is specifically designed to work with the CB1-10E, providing the required CFM to recycle the shot during operation.
Specifications:
- Motor Power: 11KW / 15Hp
- Power Supply: 3 phase 480V / 3 phase 240V
- Full Load Amperage: 25 amps / 40 amps
- Machine Weight: 839 lbs.
- Working Width: 10"
- Working Speed: 0-12 feet per minute
- Production Rate: 1500-2000 ft²/h
- Dimensions (L x W x H): 78" x 19" x 47"
------
The CD-556B Dust Collector is part of the Conglory surface prep line of equipment and is designed for machines that require a high CFM. Primarily designed to pair with the CB-10E shot blaster, this dust collector is also compatible with other shot blasters or any large ride-on scarifier that uses a 6" hose.
Key Features:
High CFM: Designed for machines that require a high CFM, making it ideal for heavy-duty applications.
Compatibility: This machine pairs perfectly with the CB-10E shot blaster and can also be used with other shot blasters or any large ride-on scarifier that uses a 6" hose.
Automatic Pulse System: This feature automatically cleans the filter, maintaining the performance of the dust collector.
Longopac Dust Collection Bag System: This system makes it easy to collect and dispose of dust.
Specifications:
- Motor Power: 5.5KW / 7.5Hp
- Power Supply: 3 phase 480 V / 3 phase 240V
- Full Load Amperage: 25 amps / 40 amps
- Machine Weight: 1263 lbs.
- CFM: 650
- HEPA H-13 Filter: 1.35 m² >99.99%@0.3μm
- Filter Cleaning: Automatic pulse system
- Dust Collection Bag System: Longopac
- Dimensions (L x W x H): 61" x 37" x 67"
