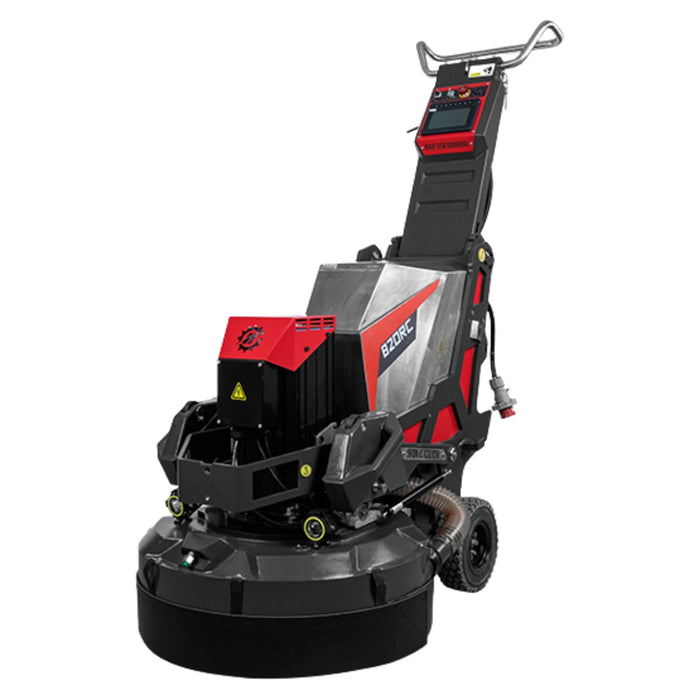

HTG-820-RC Remote Control/Autopilot Grinder

Embrace the next generation of floor grinding with the HIGH-TECH GRINDING 820 RC Remote Control Grinder/Autopilot. Equipped with advanced features and an integrated autopilot system, this large platform, four-head planetary grinder is set to redefine the standards of the industry. Its commanding grinding width of 820mm makes it an exceptional choice for various applications, from concrete floor preparation and repair to all polishing and grinding tasks, both wet and dry. Designed with productivity in mind, the HTG-820RC operates autonomously, allowing a single operator to manage two machine setups and effectively saving time and labor.

Key Features:

Super Following Function System: Enables smooth operation and efficient grinding.

HMI System: Provides a clear and intuitive user interface for improved operation.

Flexible Turning System: Allows for easy maneuverability and precise control.

Oscillating Grinding System: Delivers superior grinding performance on all surfaces.

Mist Spray Water System: Ensures dust control and creates a safer working environment.

Effortless Transportation System: Offers easy portability and reduces labor.

Swing Weights System: Maintains balance and improves grinding efficiency.

Multi-functional Plates System: Ensures compatibility with various grinding tools.

Patent Gearbox with MAGcleaning™ System: Improves durability and requires less maintenance.

Specifications:

• Working Width: 820mm
• Motor Power: 15KW
• Power Supply: 3 phase 240V / 480V
• Working Speed: 350-1950rpm
• Operation: Remote Control System
• Water Tank Capacity: 20L
• Machine Weight: 620kg
• Package Inclusions: Maintenance Bag
• Power Rating: 15KW/18KW – 20/25HP
• FLA: 40 amps / 50 amps
• Grinding Width: 32”
• Grinding Head Pressure: 550-700 lbs.
• Grinding Disc Speed: 280-1200 rpm
• Number of Grinding Discs: 4 x 11”
• Planetary Disc Speed: 30-130 rpm
• Overall Dimensions: (L-W-H) 75″-33″-76”
