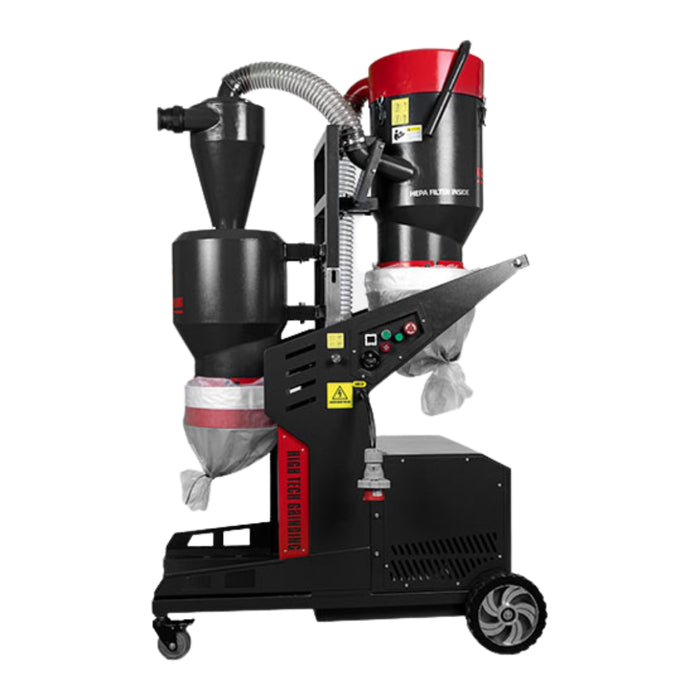

IVC-45L Plus Dust Collector

The IVC-45L is a high-efficiency HEPA dust collector designed with a two-stage filtering system. This system consists of a cyclone separator and a HEPA H13 filter, ensuring an efficiency rate of >99.99%, which upholds a high standard of quality and safety. It adheres to OSHA regulations for concrete dust handling. The unique "reverse-air" jet-pulse filter cleaning system allows for efficient filter cleaning, promoting continuous high-intensity work. The IVC-45L has a lift-able design for the two dust bins, making it easy to work with and transport.

Key Features:

Liftable Barrel Design: The built-in gas spring can easily operate the vacuum cleaner up and down, saving transportation space.

Vortex Dust Suppression Device: High-density filter screen blocks fine dust layer by layer.

Fine Filtration: Firmly absorb dust and relieve dust cleaning pressure.

Integrated Central Control Panel Design: Easy to operate.

Equipped with Continuous Dust Bag: Provides a fast, dust-free bagging solution.

Specifications:

• Motor Power: 5.5KW / 7.5Hp
• Power Supply: 3 phase 480 V / 3 phase 240V
• Full Load Amperage: 11 amps / 23 amps
• Weight: 494 lbs.
• CFM: 353
• HEPA H-13 Filter: 2.8 m² >99.99%@0.3μm
• Filter Cleaning: Manual pulse system
• Hose: 2" / 3"
• Longopac Dust Collection Bag System: Included
• Dimensions (L x W x H): 49" x 28" x 64"
• Rated Current: 13.3/25A
• Maximum Suction: 35Kpa
• Air Flow Rate: 600
• Recommended Minimum Cable Area: 4
• Filtration Size: 2.8
• Filter Level: HEPA 13
